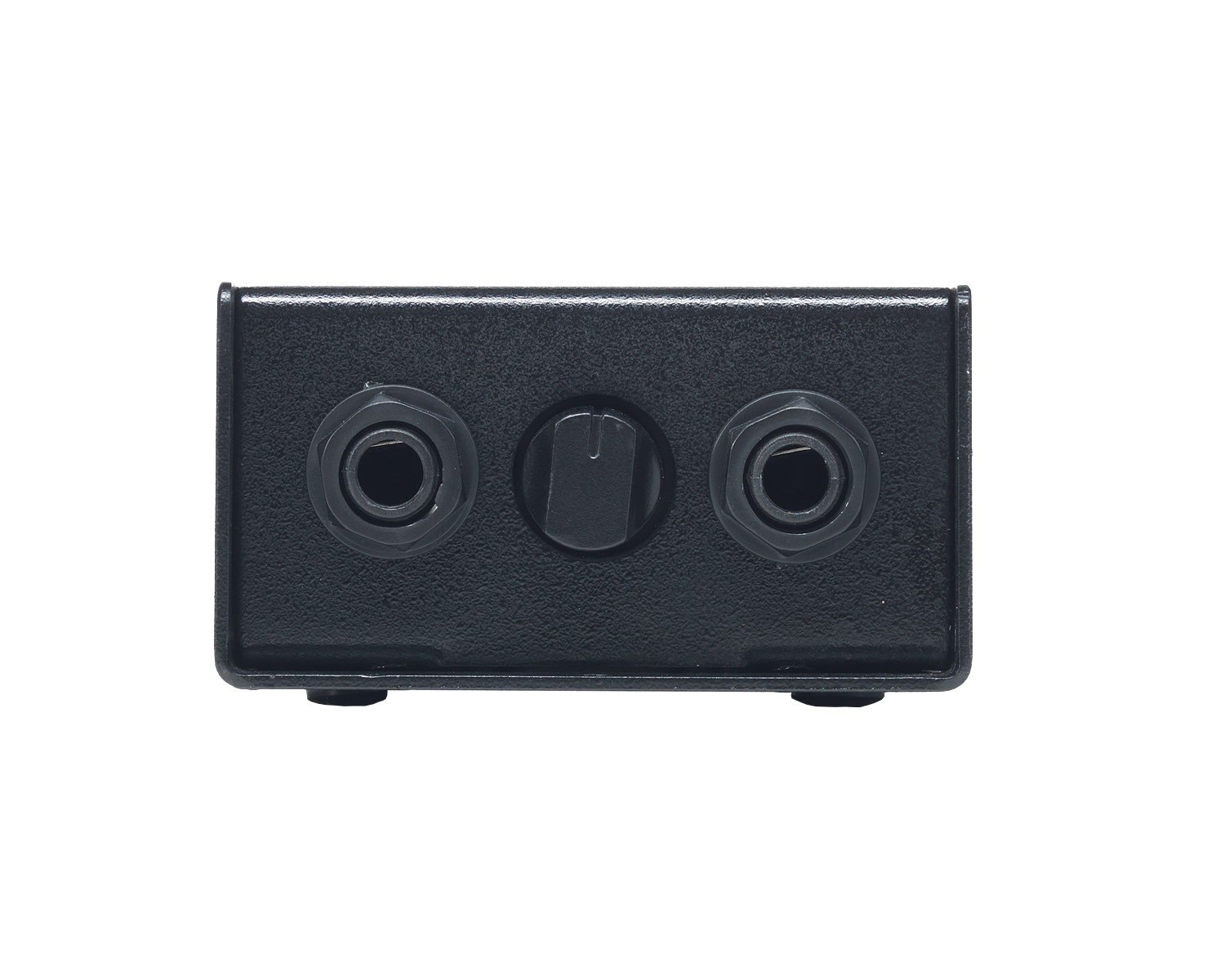

dbx Di1 Active DI Box - Battery or 18-48V Phantom Powered
The dbx Di1 is a compact high-quality active direct injection box. Ideal for both studios and on the road, the Di1 will ensure audio signals reach their intended destination in both a balanced format and free from unwanted noise.
Connect the output from electric guitars, bass amplifiers, keyboards, etc., directly to a console mixer without the use of a microphone.
Built for toughness and reliability, the Di1 has all the features of a fully featured gig-ready workhorse DI unit.
The Di1 Active Direct Box
A compact high-quality active direct injection box
Ideal for both studios and on the road
Ensures audio signals reach their intended destination in both a balanced format and free from unwanted noise
Connect the output from electric guitars, bass amplifiers, keyboards, etc
Built for toughness and reliability
Input Impedance: > 250k Ohm
Max Input: +12dBu (at 0dB) Level +32dBu (at -20dB) +52dBu (at -40dB)
Connectors: Two Parallel 1/4" jack connectors and a parallel XLR connector (unbalanced), 1/4" Jack: Tip Hot, Sleeve Ground; XLR Jack: Pin 2 Hot, Pins 1 & 3 Ground
Output Impedance: > 600 Ohms
Output Connectors: XLR balanced
Distortion: (THD) < 0.005% at 1kHz, 0dBu
Output Noise: <-100dB unweighted
Frequency Response: 10Hz to 70kHz, +0dB/-3dB
Main/Standby: 9 Volt battery
Phantom Power: +18 Volts DC to +48 Volts DC
